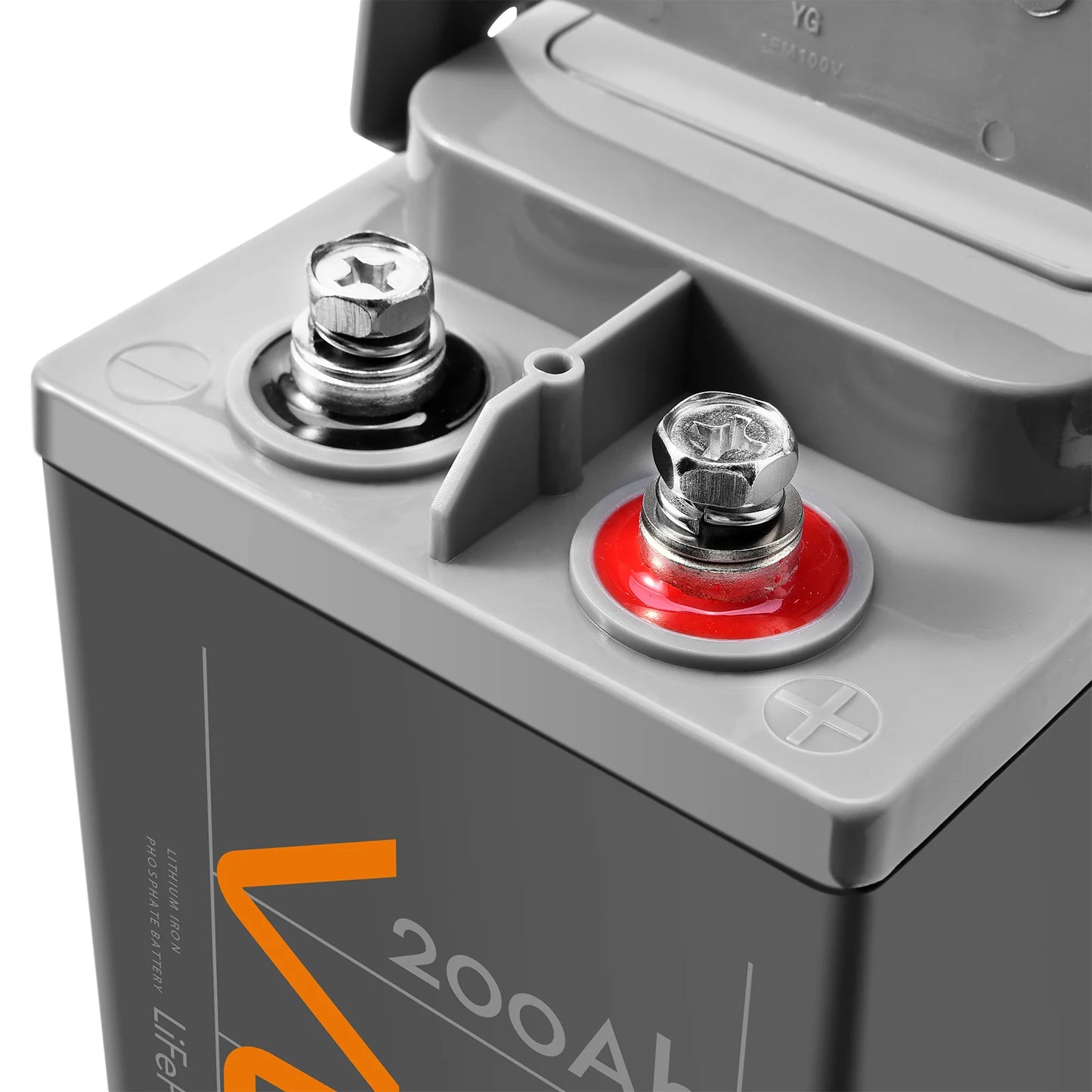

VoltX 12V 200Ah Slim Pro Battery

VoltX 12V 200Ah Slim Pro Battery

$1,519.70 AUD
$1,519.70 AUD
Sale Sold out
Taxes included.

The VoltX 12V 200Ah Slim Premium Lithium Battery allows for extra capacity with the hassle of fitting in a bulky power pack.

Perfectly sized for the outdoors, small energy storage requirements, and marine activities, this battery can supply stable power to run a wide range of appliances. Aside from VoltX's signature prismatic cells and built-in BMS, it also stands out with a fast-charging feature that does not damage your battery pack.

You can also connect up to 6 of these batteries in series or parallel to accommodate larger power requirements.

  • Approved in accordance with IEC 62619

Features

3 years Australian warranty
Ideal battery if you have limited space
Lower total operation costs (TOC) during battery life
IP65 waterproof rating
4000+ cycles, long-lasting use
Approved in accordance with IEC 62619

Specifications

Dimensions:552(L) x 110(W) x 290(H)mm
Weight:19kgs

Nominal Voltage:12.8V
Nominal Capacity:200Ah
Charging Voltage:14.2-14.6v
Rated Energy:2560Wh
Rated Discharge Current:100AMax.
Discharge Current:150AMax.
Discharge Current 5 sec:300A
Approx Life Cycles:4000
Absorption Voltage:14.4V
Float Voltage:13.8V
Overcharge Protection:14.4V
Overcharge Recovery:14V
Overdischarge Protection:10.8V
Overdischarge Recovery:11.2V
Cell Grouping:4S2P


Working Temperature Range:
Charge: 0°C to 45°C
Discharge: -25°C to 65°C
Storage Temperature:-10℃ to 50℃
Battery Cells:Prismatic
Case Material:ABS Plastic
Parallel Connection:Yes, max 6 batteries
Series Connection:Yes, max 6 batteries
Warranty in Years:3

Fitting

Battery requires a secure fitting position. Battery box is recommended.
