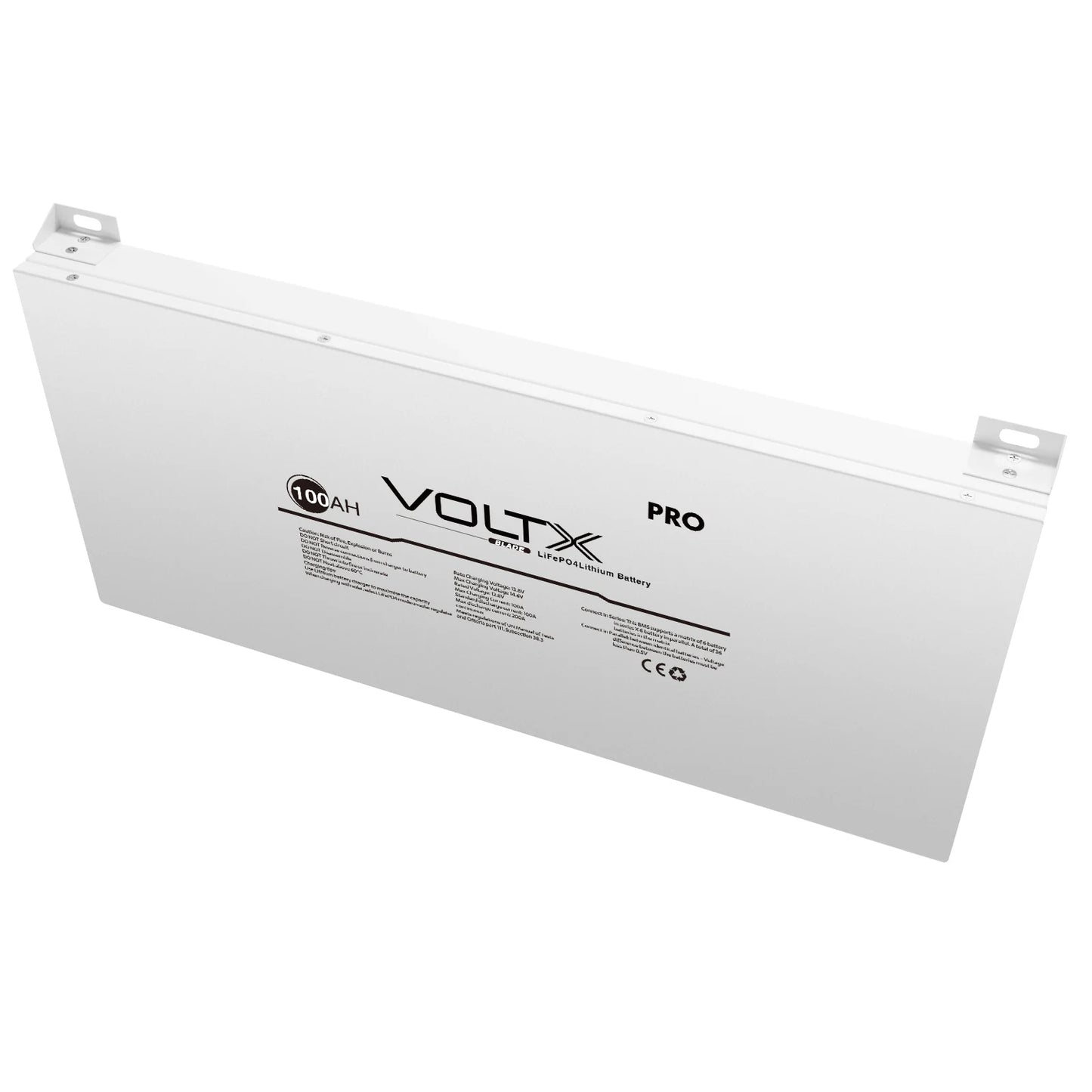

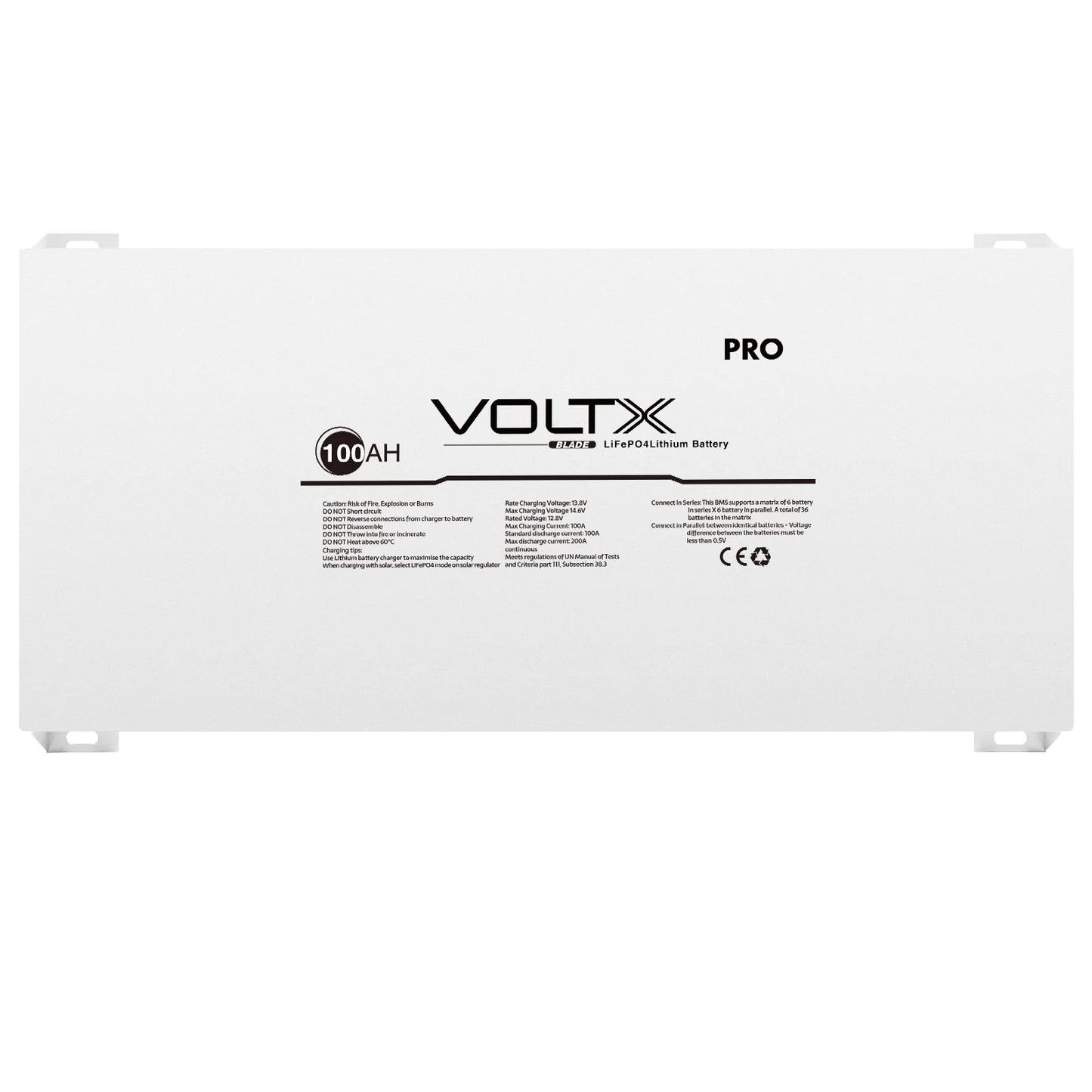

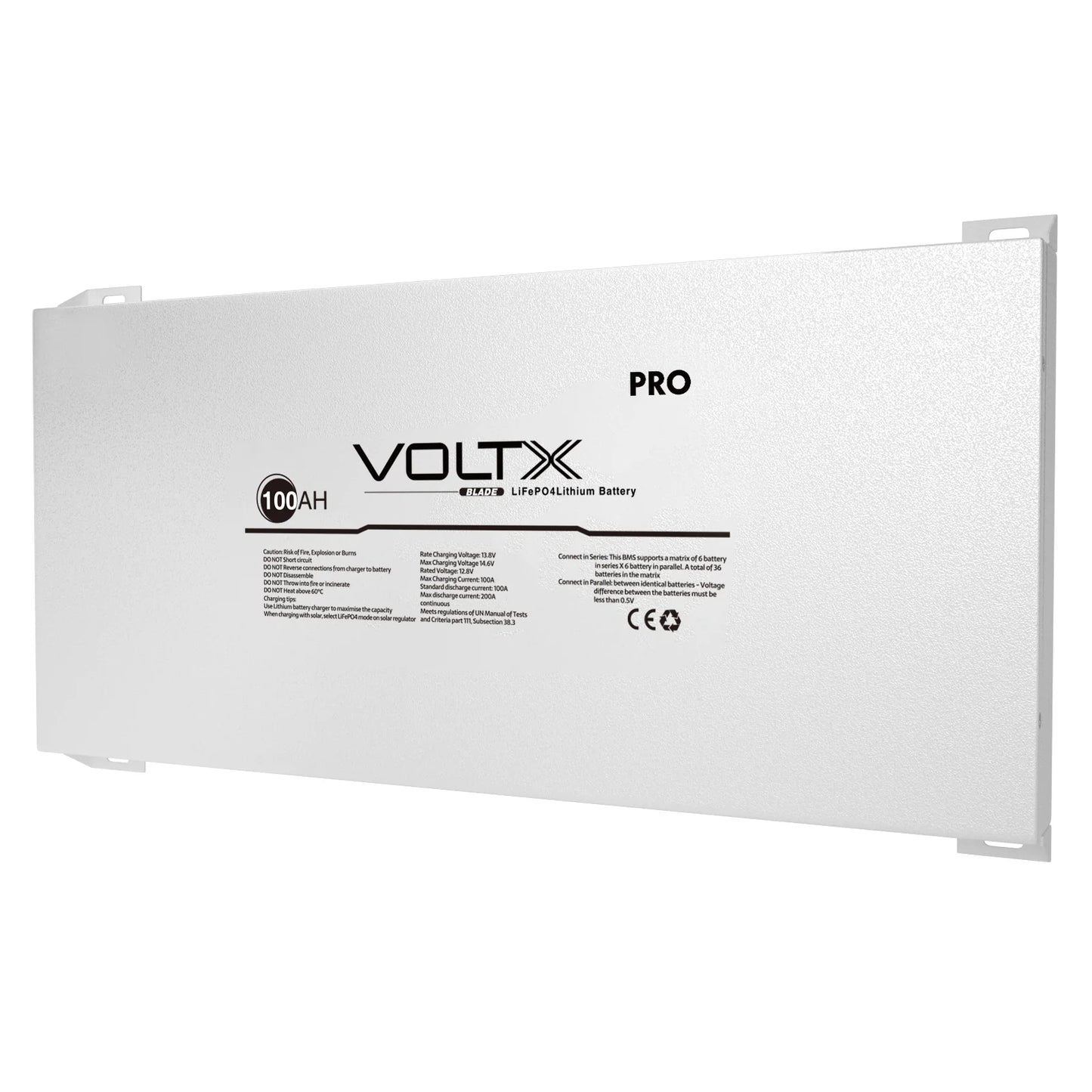

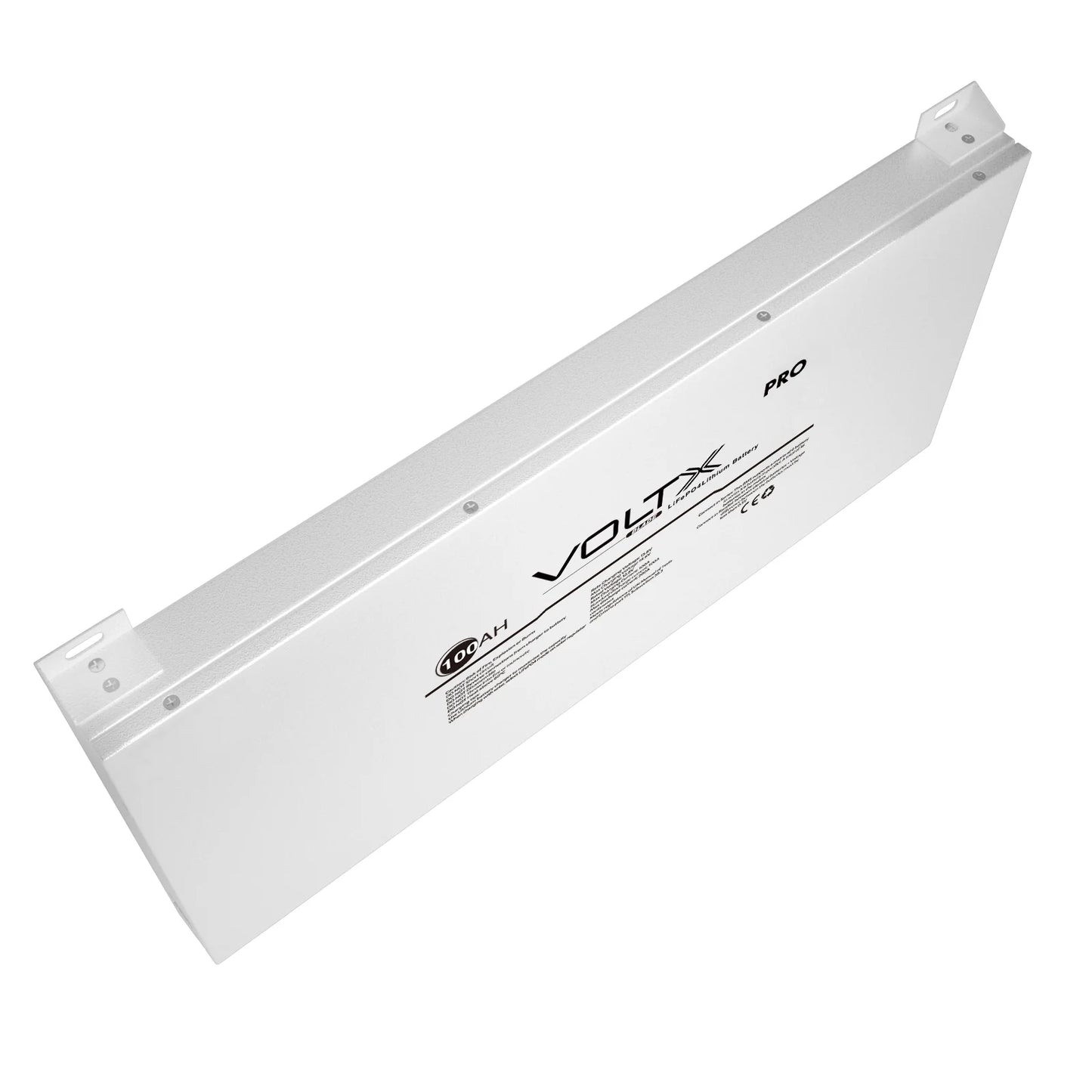

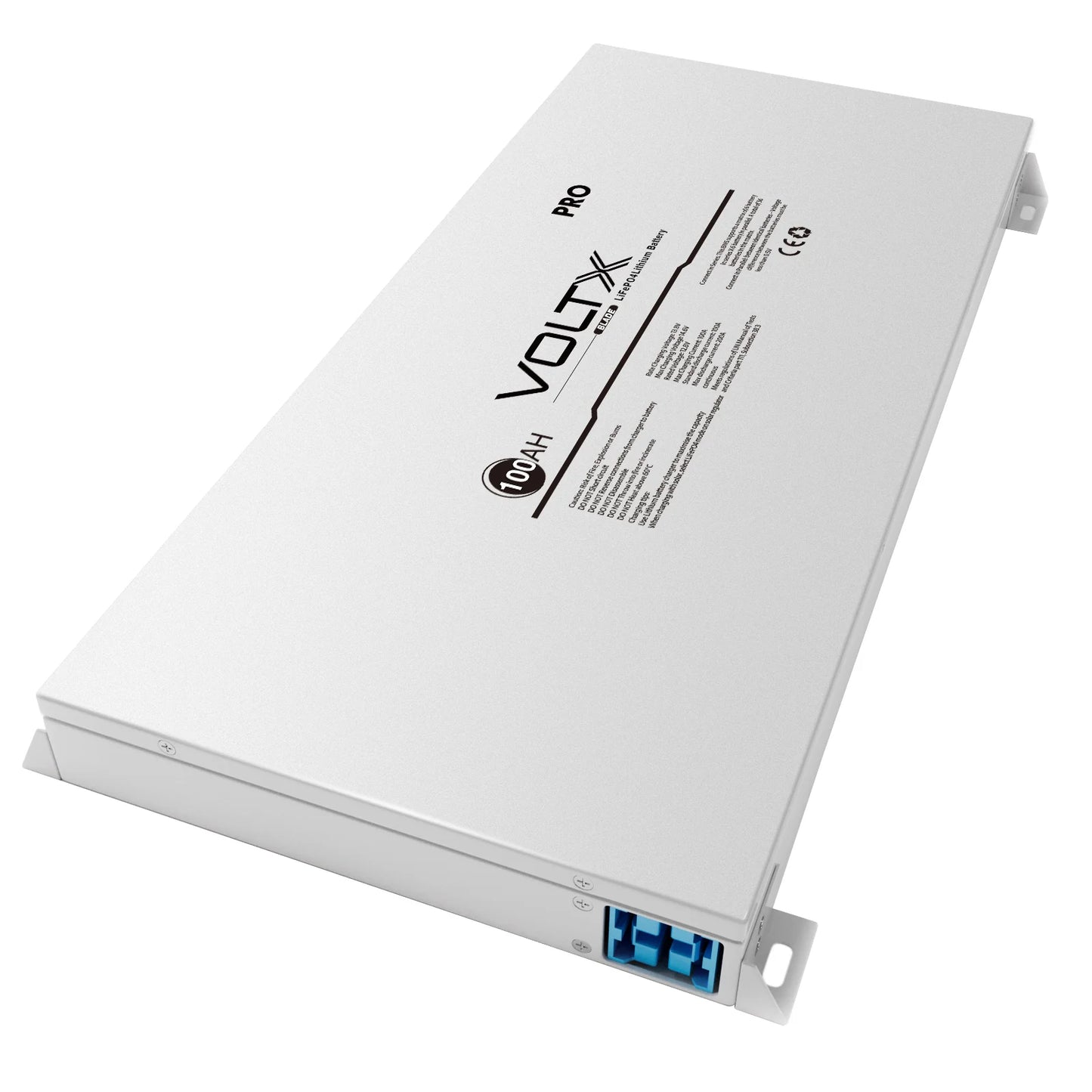

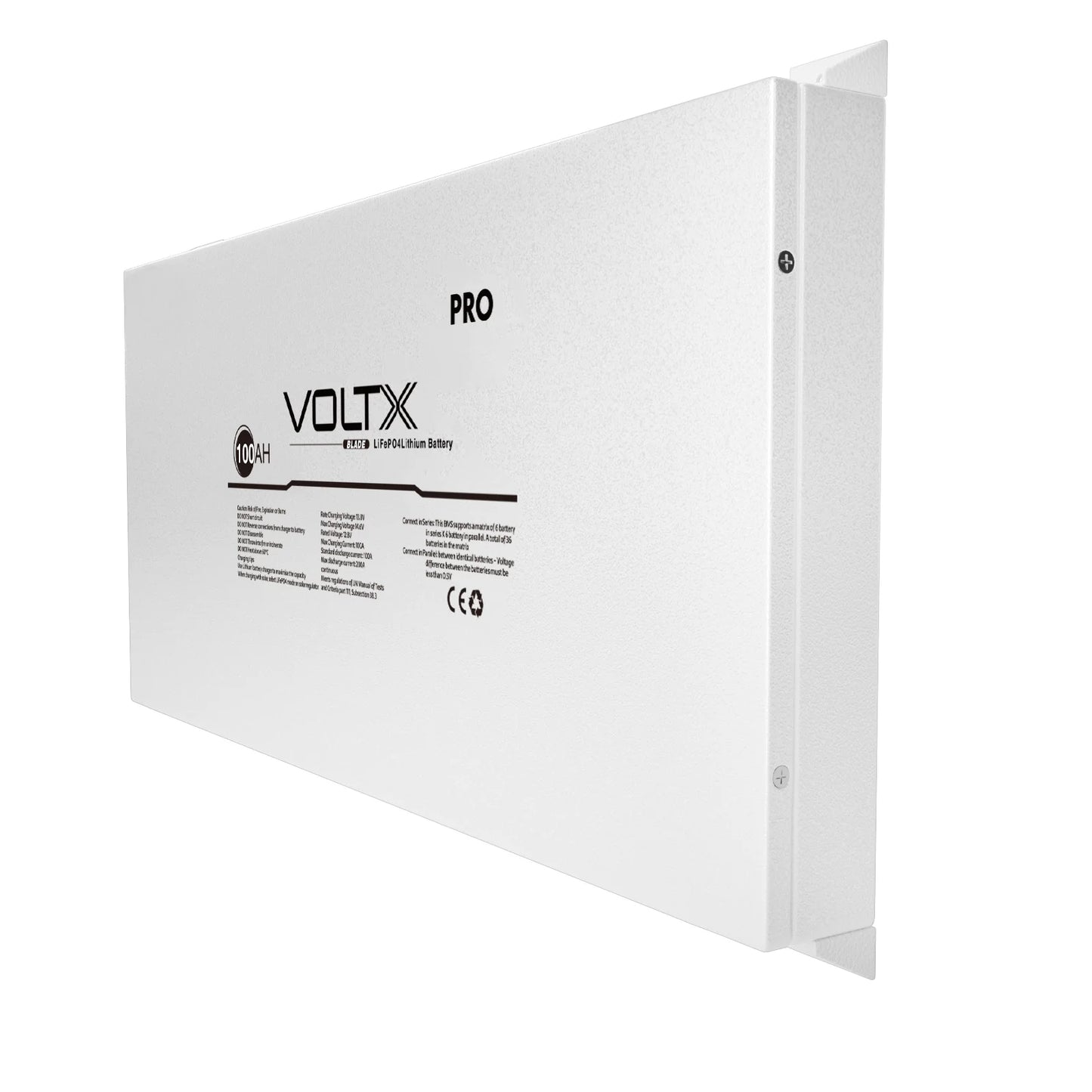

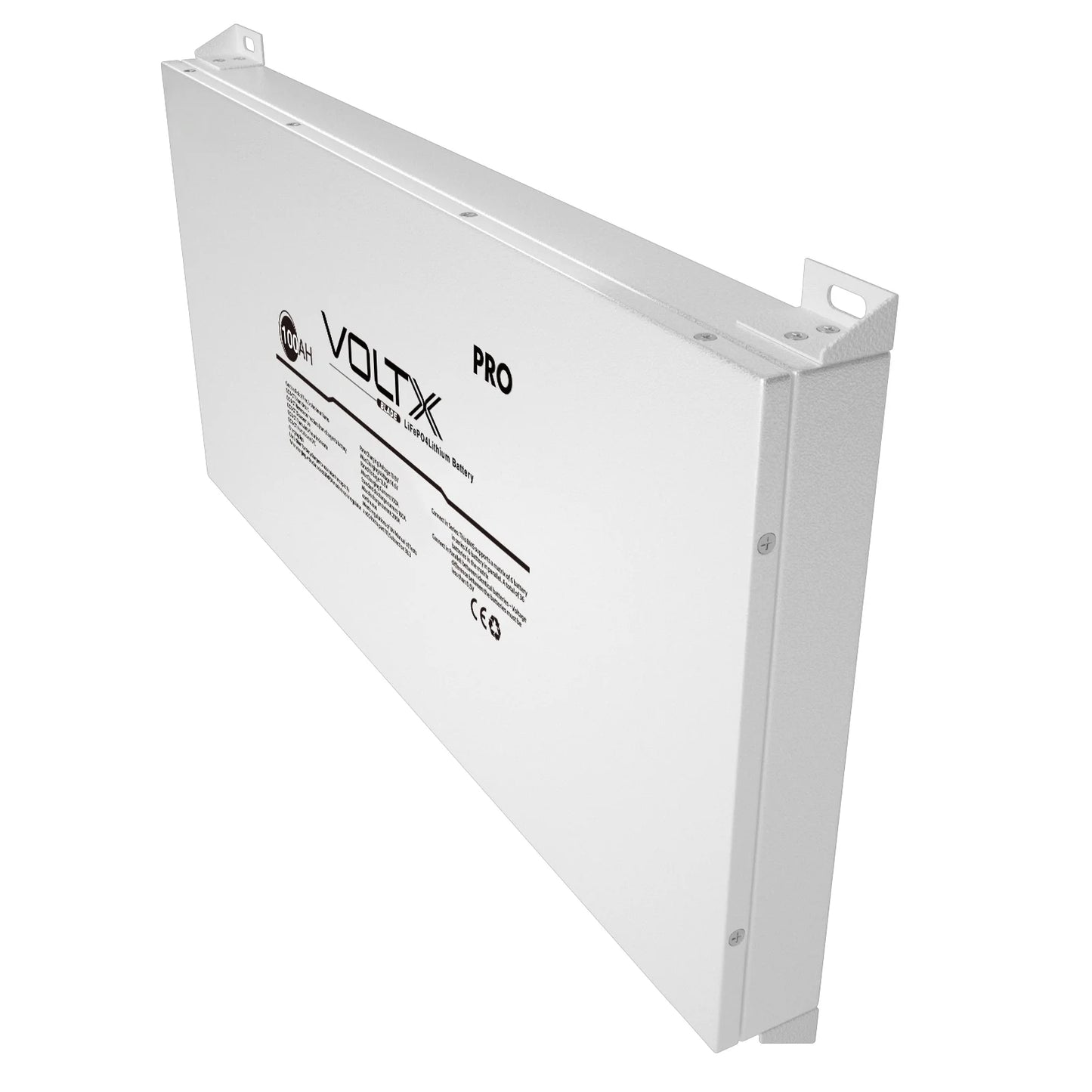

VoltX 12V 100Ah Blade Premium Battery

VoltX 12V 100Ah Blade Premium Battery

$1,345.00 AUD
$1,345.00 AUD
Sale Sold out
Taxes included.

Power up with VoltX's slimmest lithium battery. The VoltX 12V 100Ah Blade Premium LiFePO4 battery features an ultra-thin, briefcase-like design that easily fits in any space.


Inside, it contains a VoltX's smart battery management system (BMS) and grade-A prismatic cells that ensure the smoothest, safest, and most efficient performance. This battery also boasts a fast-charging feature and allows up to 6 batteries to be connected in series or parallel for extra output that won't leave you with a cramped space.

  • Approved in accordance with IEC 62619

Features

Ultra-slim space-savvy design, 15.5kgs only
IP65 waterproof rating
Connects up to 6 batteries in series/parallel
7 years Australian warranty
More than 4000 cycles
Approved in accordance with IEC 62619

Specifications

Dimensions:600(L) x 270(W) x 65(H)mm

Weight:15.5kgs

Nominal Voltage:12.8V
Nominal Capacity:100Ah
Charging Voltage:14.2-14.6v
Rated Energy:1280Wh
Rated Discharge Current:100AMax.
Discharge Current:200AMax.
Discharge Current 5 sec:600A
Approx Life Cycles:4000
Absorption Voltage:14.4V
Float Voltage:13.6V
Overcharge Protection:14.4V
Overcharge Recovery:14V
Overdischarge Protection:11.2V
Overdischarge Recovery:11.6VCell Grouping:4S1P
Working Temperature Range:Charge: 0°C to 45°C
Discharge: -25°C to 65°C
Storage Temperature:-10℃ to 50℃Battery Cells:Prismatic
Case Material:SPCC

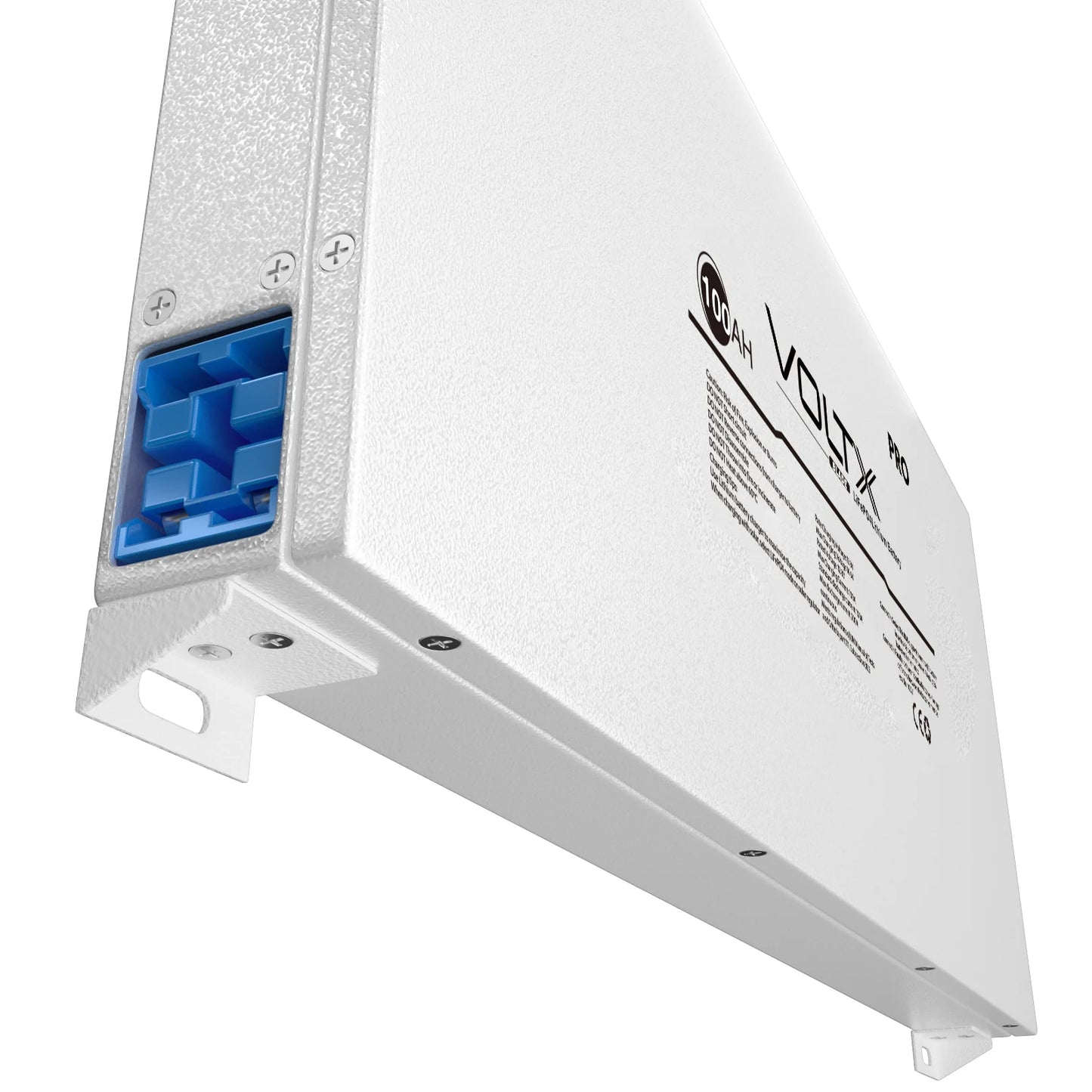

Anderson Plug:175A
Parallel Connection:Yes, max 6 batteries
Series Connection:Yes, max 6 batteries
Warranty in Years:5

Fitting

Using the mounting holes provided, mark and drill holes in the location you wish to mount your battery.
